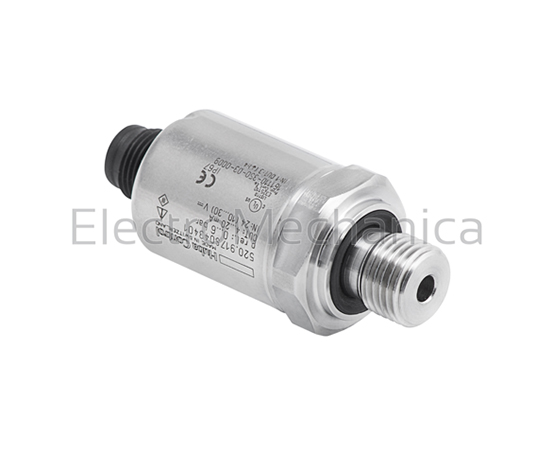

520.955S033401 – Press. Transmitter – M12 G1/4" | Huba Control
Press. Transmitter – M12 G1/4″ — Huba Control 520.955S033401. Degree Of Protection (IP): IP67. Order from Shop ElectroMechanica; prices exclude VAT.
Order code
520.955S033401
Availability confirmed on quote
Your price
R3,003.00
Excluding VAT · per unit · volume pricing available on request
Genuine product — supplied through authorised ElectroMechanica channels.
Delivery across South Africa & Africa — lead time confirmed on order.
Off-site stock — availability is confirmed after quote request or order placement.
Overview
520.955S033401 – Press. Transmitter – M12 G1/4″ | Huba Control
520 pressure transmitters/sensors
520.955S033401 is supplied by ElectroMechanica as part of the Huba Control range. Prices shown exclude VAT.
Technical specifications
| Product Series | Type 520 |
|---|---|
| Pressure Range | 0 … 600 |
| Power Supply | 7 – 33 VDC |
| Output DC | 4 – 20 mA |
| Electrical Connection | M12x1 |
| Product Type | Pressure transmitter |
| Pressure Connection | G 1/4 |
| Degree Of Protection (IP) | IP67 |
| Accuracy | ± 0.3 % fs |
| Medium Temperature Range | -15 … +125 °C |
| Response Time | < 2 ms, (1 ms typical) |
Technical specifications
Data supplied by the manufacturer. Please confirm against the official datasheet before ordering.
Ordering & identification
Order code
520.955S033401
Product Name
Press. Transmitter – M12 G1/4"
Brand
Huba Control
Product Type
Pressure transmitter
Product Series
Type 520
Electrical ratings
Power Supply
7 – 33 VDC
Contacts, control & I/O
Output DC
4 – 20 mA
Sensing & measurement
Accuracy
± 0.3 % fs
Response Time
< 2 ms · (1 ms typical)
Pressure Range
0 … 600
Protection & compliance
Degree of protection (IP)
IP67
Medium Temperature Range
-15 … +125 °C
Wiring & termination
Electrical Connection
M12x1
Pressure Connection
G 1/4
