Key specifications
Degree of protection (IP)
IP67
Supply Voltage
10 – 30 VDC
Product Series
AE series
MD Microdetectors
AE series · Authorised distributor

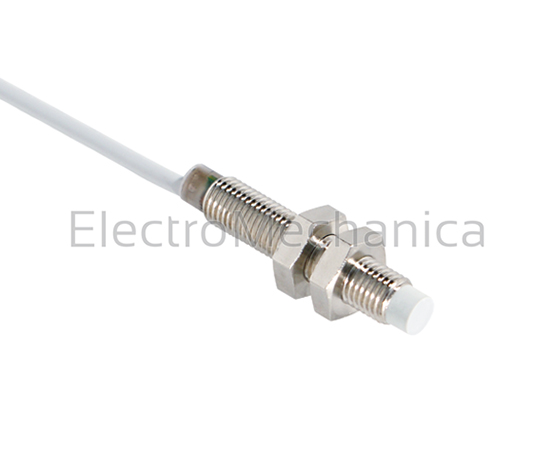

AE1/AP-2A – M8 2.5mm PNP NO 10-30VDC Proxi | MD Microdetectors
M8 2.5mm PNP NO 10-30VDC Proxi — MD Microdetectors AE1/AP-2A. Degree Of Protection (IP): IP67. Order from Shop ElectroMechanica; prices exclude VAT.
Order code
AE1/AP-2A
Availability confirmed on quote
Your price
R560.70
Excluding VAT · per unit · volume pricing available on request
Genuine product — supplied through authorised ElectroMechanica channels.
Delivery across South Africa & Africa — lead time confirmed on order.
Off-site stock — availability is confirmed after quote request or order placement.
Overview
AE1/AP-2A – M8 2.5mm PNP NO 10-30VDC Proxi | MD Microdetectors
AE series M8 standard body proximity switches
AE1/AP-2A is supplied by ElectroMechanica as part of the MD Microdetectors range. Prices shown exclude VAT.
Technical specifications
| Product Series | AE series |
|---|---|
| Product Type | M8 standard body proximity switches |
| Sensing Type | Standard sensing range |
| Supply Protection | Short circuit and polarity reversal protection |
| Degree Of Protection (IP) | IP67 |
| LED Indication | Incorporated |
| Housing Material | Nickel-plated brass |
| Supply Voltage | 10 – 30 VDC |
| Flush Mount | No |
| Non-Flush Mount | Yes |
| Sensing Distance | 2.5 mm |
| PNP Output | Yes |
| NPN Output | No |
| Normally Open (NO) | Yes |
| Normally Closed (NC) | No |
| Connector | Cable (3 wire) |
| Body Length | 45 mm |
Technical specifications
Data supplied by the manufacturer. Please confirm against the official datasheet before ordering.
Ordering & identification
Order code
AE1/AP-2A
Product Name
M8 2.5mm PNP NO 10-30VDC Proxi
Brand
MD Microdetectors
Product Type
M8 standard body proximity switches
Product Series
AE series
Electrical ratings
Supply Voltage
10 – 30 VDC
Supply Protection
Short circuit and polarity reversal protection
Contacts, control & I/O
PNP Output
Yes
NPN Output
No
Normally Open (NO)
Yes
Normally Closed (NC)
No
Sensing & measurement
Sensing Distance
2.5 mm
Sensing Type
Standard sensing range
Protection & compliance
Degree of protection (IP)
IP67
Mechanical & materials
Housing Material
Nickel-plated brass
Body Length
45 mm
Wiring & termination
Connector
Cable (3 wire)
Compatibility & application
LED Indication
Incorporated
Flush Mount
No
Non-Flush Mount
Yes
Documents & downloads
Official documentation for this order code.
Ordering & delivery
How to order
Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.
Stock & lead time
Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.
Delivery
Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
