ElectroMechanica.africa
Authorised Distributor
Genuine product
Key specifications
Rated current (Iu)
125A
Rated Operational Voltage
230/400 V
Number of poles
3
Degree of protection (IP)
IP20
Mounting
DIN rail mountable
Hager
Authorised distributor
SBN399 – 125A 3P Main Isolator Switch | Hager
125A 3P Main Isolator Switch — Hager SBN399. Rated Current: 125A, Rated Operational Voltage: 230/400 V. Order from Shop ElectroMechanica; prices exclude VAT.
Order code
SBN399
Availability confirmed on quote
Your price
R989.10
Excluding VAT · per unit · volume pricing available on request
Genuine product — supplied through authorised ElectroMechanica channels.
Delivery across South Africa & Africa — lead time confirmed on order.
Off-site stock — availability is confirmed after quote request or order placement.
Overview
SBN399 – 125A 3P Main Isolator Switch | Hager
Modular isolators
SBN399 is supplied by ElectroMechanica as part of the Hager range. Prices shown exclude VAT.
Technical specifications
| Rated Current | 125A |
|---|---|
| Switching | On – Off |
| Mounting | DIN rail mountable |
| Number Of Poles | 3 |
| Width In 17.5 mm Modules | 3 |
| Product Type | Modular isolator switch |
| SANS / IEC Standard | 60947-3 |
| Utilisation Category | AC 22B |
| Cross-Section, Rigid Cable | 6 / 50mm² |
| Cross-Section, Flexible Cable | 6 / 35mm² |
| Rated Operational Voltage | 230/400 V |
| Frequency | 50/60 Hz |
| Operating Temperature | -20 to 50 °C |
| Degree Of Protection (IP) | IP20 |
Technical specifications
Data supplied by the manufacturer. Please confirm against the official datasheet before ordering.
Ordering & identification
Order code
SBN399
Product Name
125A 3P Main Isolator Switch
Brand
Hager
Product Type
Modular isolator switch
Electrical ratings
Number of poles
3
Rated current (Iu)
125A
Frequency
50/60 Hz
Utilisation Category
AC 22B
Sensing & measurement
Rated Operational Voltage
230/400 V
Protection & compliance
Degree of protection (IP)
IP20
Operating Temperature
-20 to 50 °C
SANS / IEC Standard
60947-3
Mechanical & materials
Mounting
DIN rail mountable
Width In 17.5 mm Modules
3
Wiring & termination
Cross-Section, Flexible Cable
6 / 35mm²
Cross-Section, Rigid Cable
6 / 50mm²
Additional specifications
Switching
On – Off
Documents & downloads
Official documentation for this order code.
Ordering & delivery
How to order
Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.
Stock & lead time
Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.
Delivery
Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
Similar items
Comparable order codes you may want instead.
Modular contactors & Relays ERC416 – Relay 16A 4NO 230VAC MAN/OVERRIDE | Hager
ERC416 R947.10

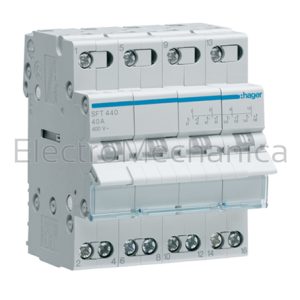

Modular contactors & Relays SFT440 – 40A 4P Changeover Switch | Hager
